GC3 Roundtable #3 — Layout and Composition of Multiple Plots

From Single Figures to Cohesive Visual Stories

Jimmy Zhang

2025-11-06

Why layout matters

• Last time: group comparisons (e.g., violin/box/raincloud).
• Today: how multiple plots work together to tell one story.
• Good layout ⇒ stronger visual hierarchy, comparability, and clarity.
• Bad layout ⇒ clutter, duplicated elements, and misinterpretation.

Note

Goal: Compose multi-panel figures that are publication-ready and reproducible.

What we’ll cover

1. Patchwork grammar for multi-plot composition

2. Advanced control: widths/heights, custom designs, legend & axis collection

3. Design principles: hierarchy, accessibility, and story flow

4. Demos: diagnostics dashboard, group comparisons, publication figure with tags

5. Exporting & common pitfalls

Packages for layout

Package	Strength	Example
patchwork	Intuitive grammar & guide/axis collection	(p1 | p2) / p3
cowplot	Precise alignment; plot grids	plot_grid(p1, p2)
gridExtra	Base grid layouts	grid.arrange(p1, p2)

We’ll primarily use patchwork.

Data used in demos

We’ll mix simulated data and palmerpenguins.

# Simulated example data (two groups, simple outcome)
set.seed(42)
n <- 400
simdat <- tibble(
  group = sample(c("Control", "Treatment"), n, TRUE),
  x = rnorm(n),
  y = 0.4 * (group == "Treatment") + 0.6 * x + rnorm(n, sd = 0.8)
)

# A small model for diagnostic plots later
mod <- lm(y ~ x + group, data = simdat)
simdat$.fitted <- fitted(mod)
simdat$.resid  <- resid(mod)

# Penguins subset (complete cases)
peng <- penguins |>
  select(species, island, bill_length_mm, bill_depth_mm, body_mass_g, flipper_length_mm, sex) |>
  drop_na()

Patchwork basics: horizontal & vertical

p1 <- ggplot(simdat, aes(group, y, fill = group)) +
  geom_violin(trim = FALSE, alpha = 0.6) +
  geom_boxplot(width = 0.2, outlier.shape = NA) +
  labs(title = "Outcome by Group") +
  theme(legend.position = "none")

p2 <- ggplot(simdat, aes(x, y, color = group)) +
  geom_point(alpha = 0.5) +
  geom_smooth(method = "lm", se = FALSE) +
  labs(title = "x vs y by Group")

# Side-by-side (horizontal)

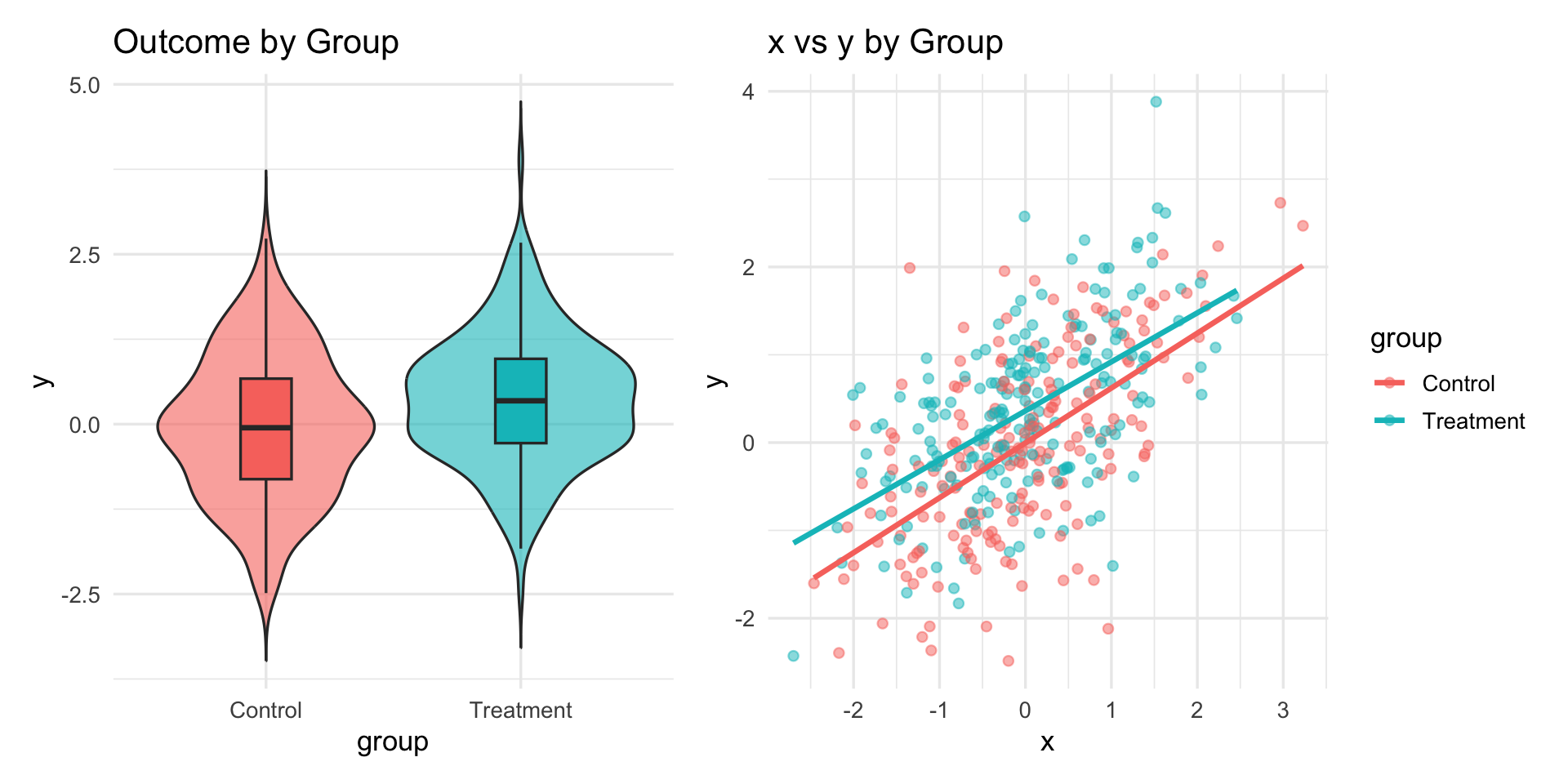

p1 | p2

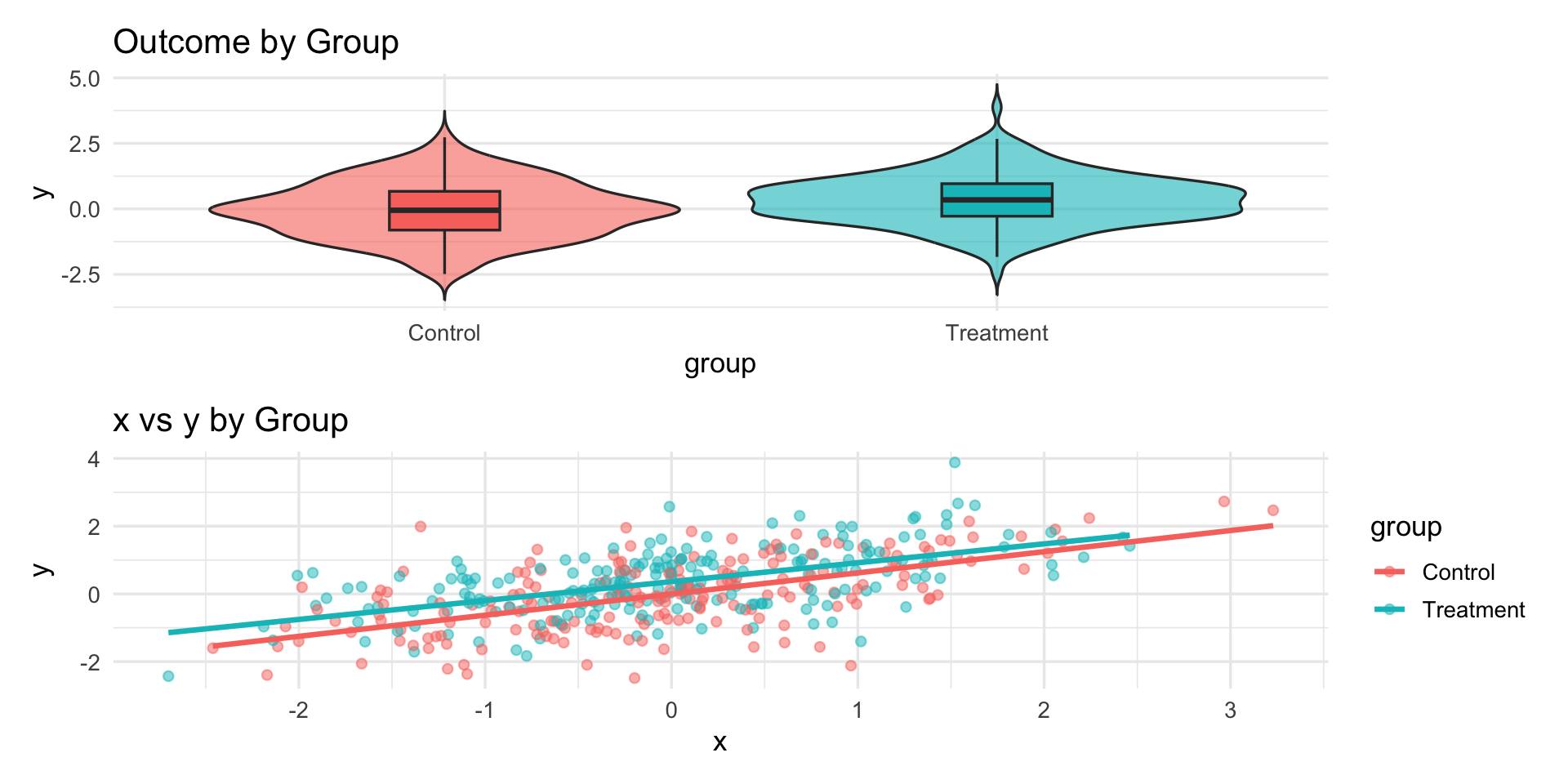

# Stacked (vertical)
p1 / p2

Patchwork: nesting & layout

# Mixed nesting

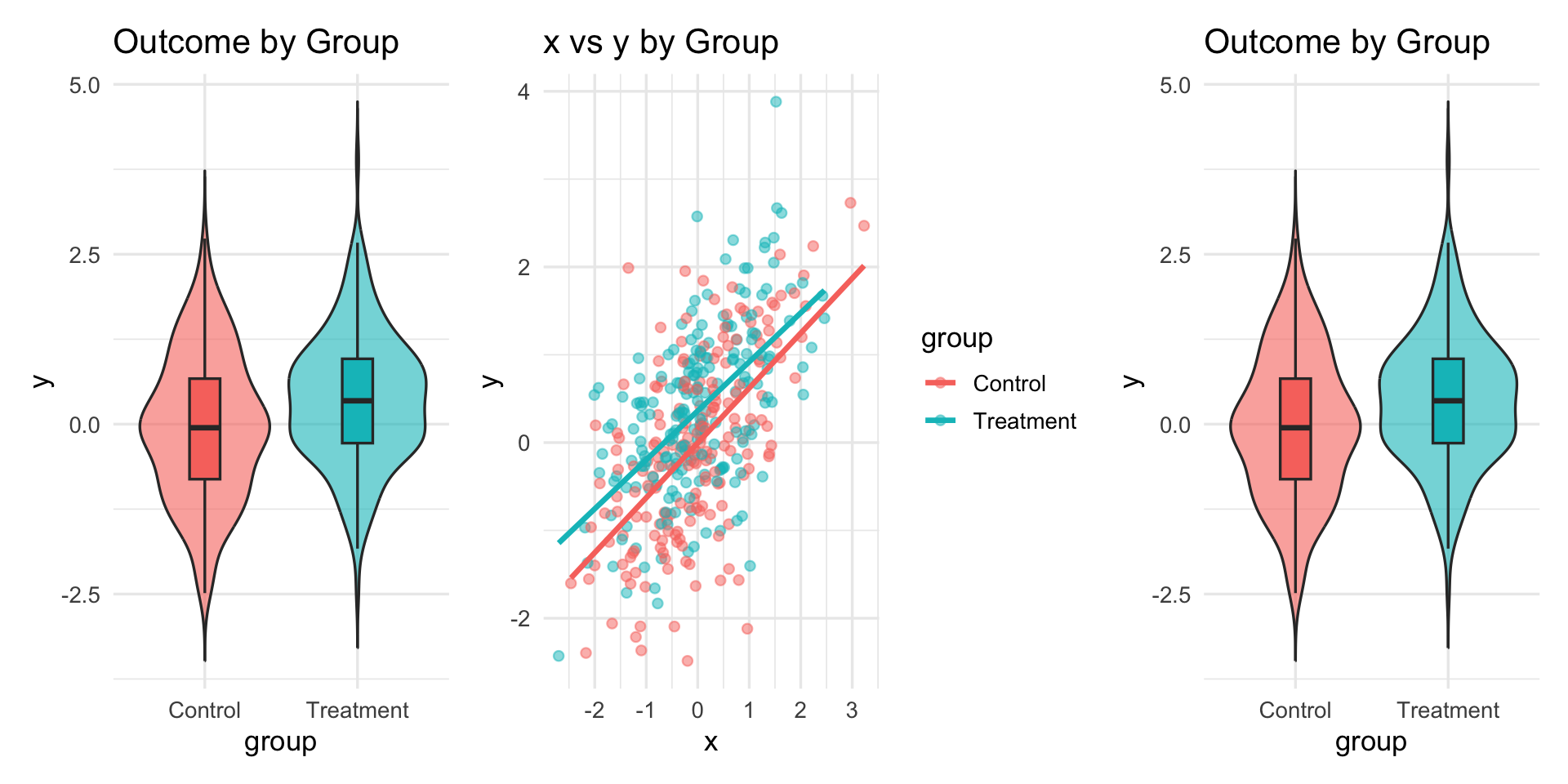

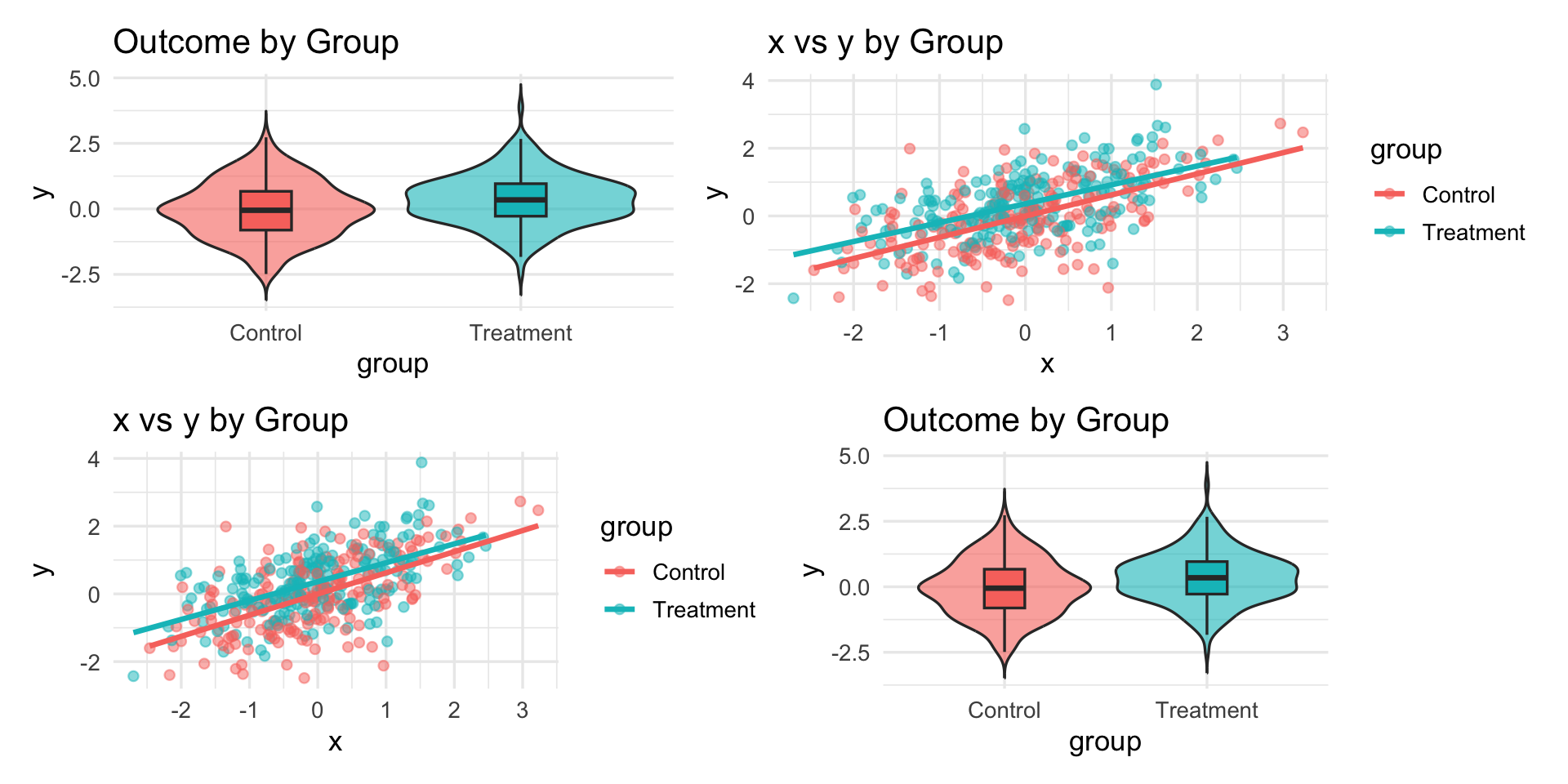

(p1 | p2) / (p2 | p1)

# Specify grid dimensions
(p1 | p2 | p1) + plot_layout(ncol = 3)

# Control relative widths / heights
(p1 | p2) + plot_layout(widths = c(1.2, 1))

Custom designs & spacers

# Custom layout design string
design <- "
AAB
CCD
"

p3 <- ggplot(simdat, aes(x = .fitted, y = .resid, color = group)) +
  geom_point(alpha = 0.6) +
  geom_hline(yintercept = 0, linetype = 2) +
  labs(title = "Residuals vs Fitted")

p4 <- ggplot(simdat, aes(sample = .resid, color = group)) +
  stat_qq(alpha = 0.6) +
  stat_qq_line() +
  labs(title = "Q-Q Plot (Residuals)")

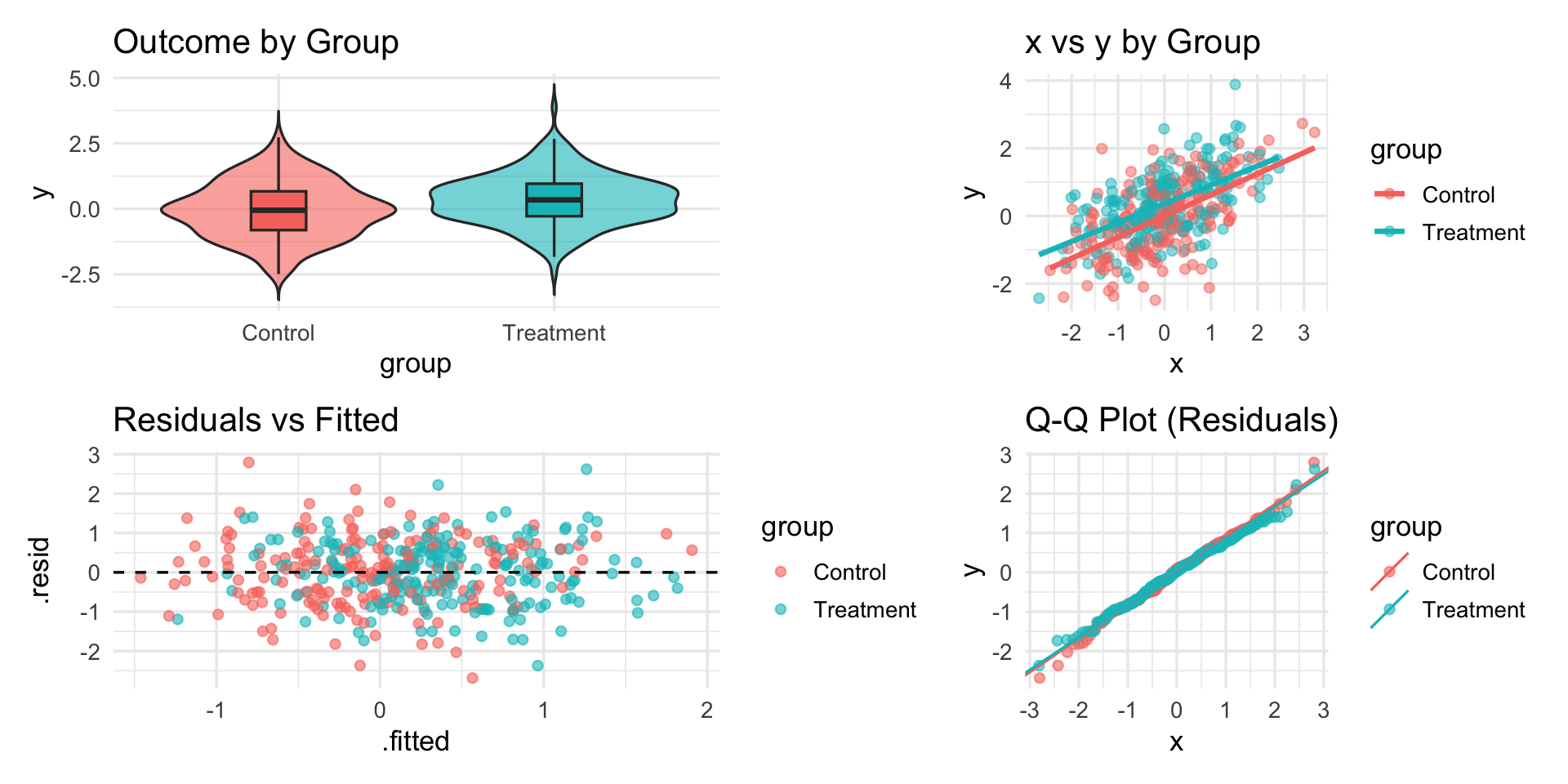

p1 + p2 + p3 + p4 + plot_layout(design = design)

# Spacers for intentional whitespace
p1 | plot_spacer() | p2

Collecting legends & axes

# Legends: collect across panels

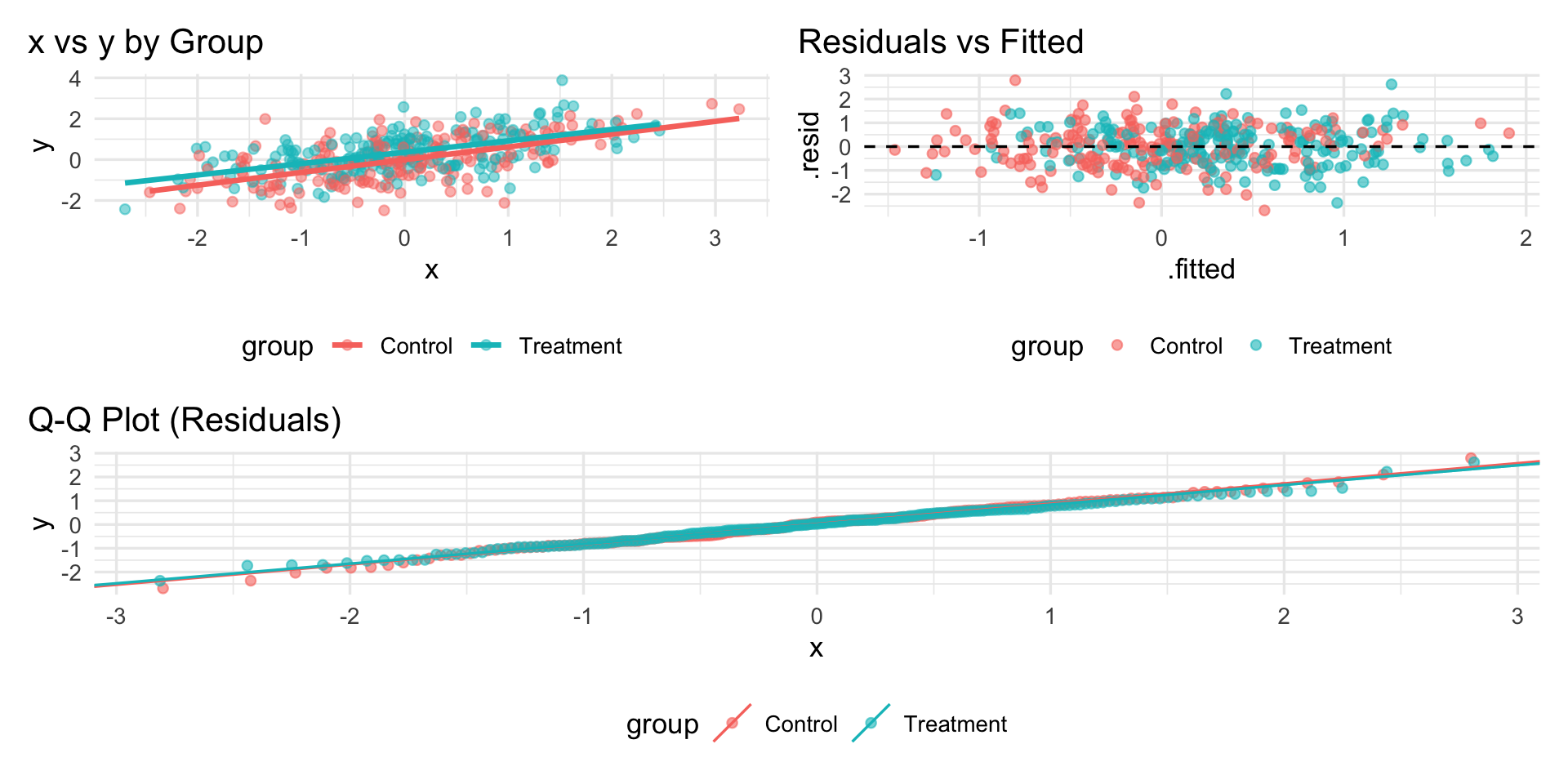

(p2 | p3 | p4) +
  plot_layout(guides = "collect") +
  plot_annotation(title = "Diagnostics with Shared Legend")

# Global theme tweaks via '&'
((p2 | p3) / p4) &
  theme(legend.position = "bottom",
        plot.title.position = "plot")

Demo: Diagnostics dashboard

diag1 <- ggplot(simdat, aes(.fitted, .resid, color = group)) +
  geom_point(alpha = 0.6) +
  geom_hline(yintercept = 0, linetype = 2) +
  labs(x = "Fitted", y = "Residuals", title = "Residuals vs Fitted")

diag2 <- ggplot(simdat, aes(x = .resid, fill = group)) +
  geom_histogram(position = "identity", alpha = 0.5, bins = 30) +
  labs(x = "Residual", title = "Residual Distribution")

diag3 <- ggplot(simdat, aes(sample = .resid, color = group)) +
  stat_qq(alpha = 0.5) + stat_qq_line() +
  labs(title = "Q–Q Plot")

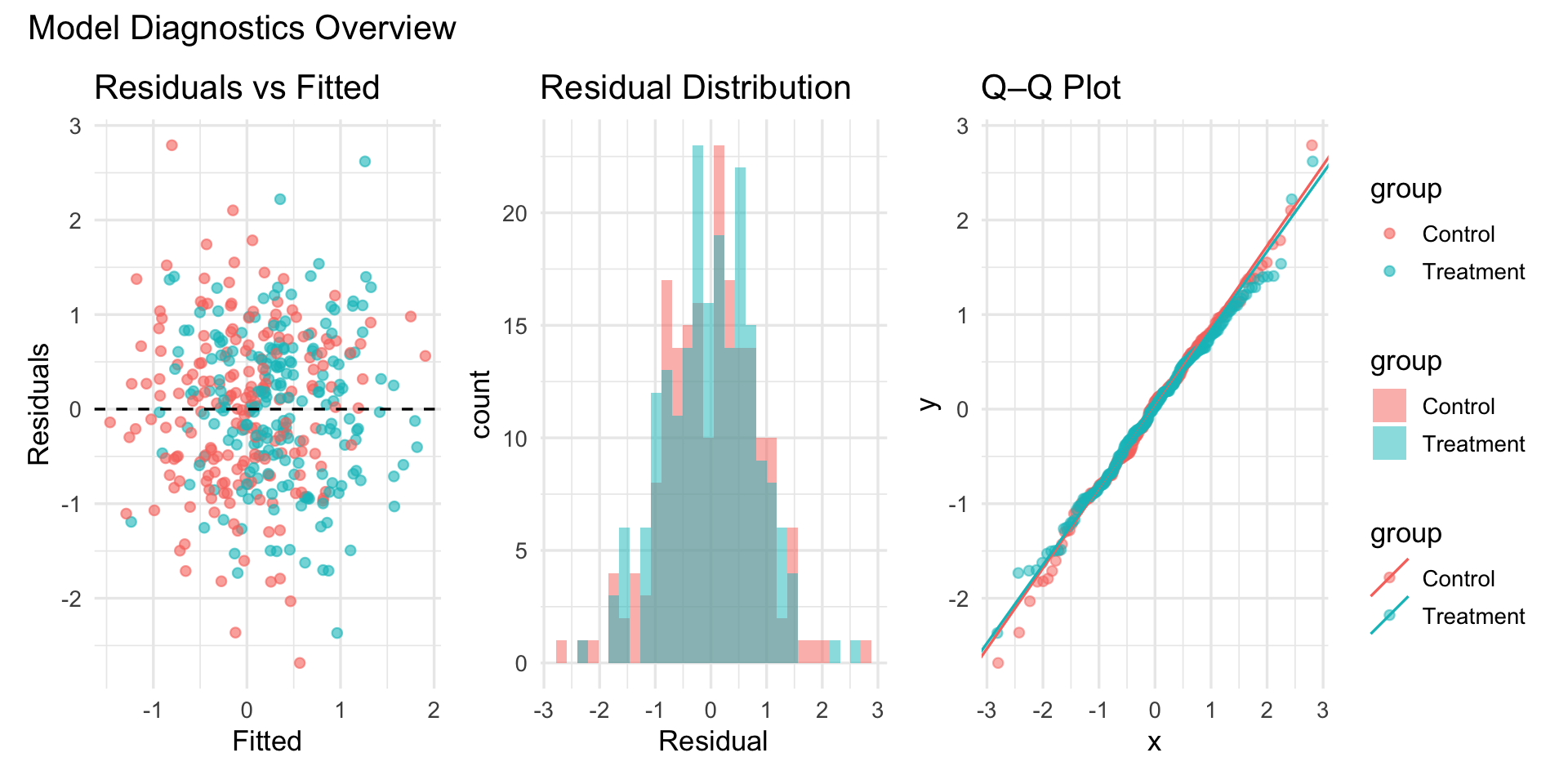

(diag1 | diag2 | diag3) +
  plot_layout(guides = "collect") +
  plot_annotation(title = "Model Diagnostics Overview")

Demo: Group comparisons panel (penguins)

gA <- ggplot(peng, aes(species, bill_length_mm, fill = species)) +
  geom_violin(trim = FALSE, alpha = 0.6) +
  geom_boxplot(width = 0.15, outlier.shape = NA) +
  labs(title = "Bill Length by Species", x = NULL, y = "mm")

gB <- ggplot(peng, aes(species, bill_depth_mm, fill = species)) +
  geom_violin(trim = FALSE, alpha = 0.6) +
  geom_boxplot(width = 0.15, outlier.shape = NA) +
  labs(title = "Bill Depth by Species", x = NULL, y = "mm")

gC <- ggplot(peng, aes(species, body_mass_g, fill = species)) +
  geom_violin(trim = FALSE, alpha = 0.6) +
  geom_boxplot(width = 0.15, outlier.shape = NA) +
  labs(title = "Body Mass by Species", x = NULL, y = "g")

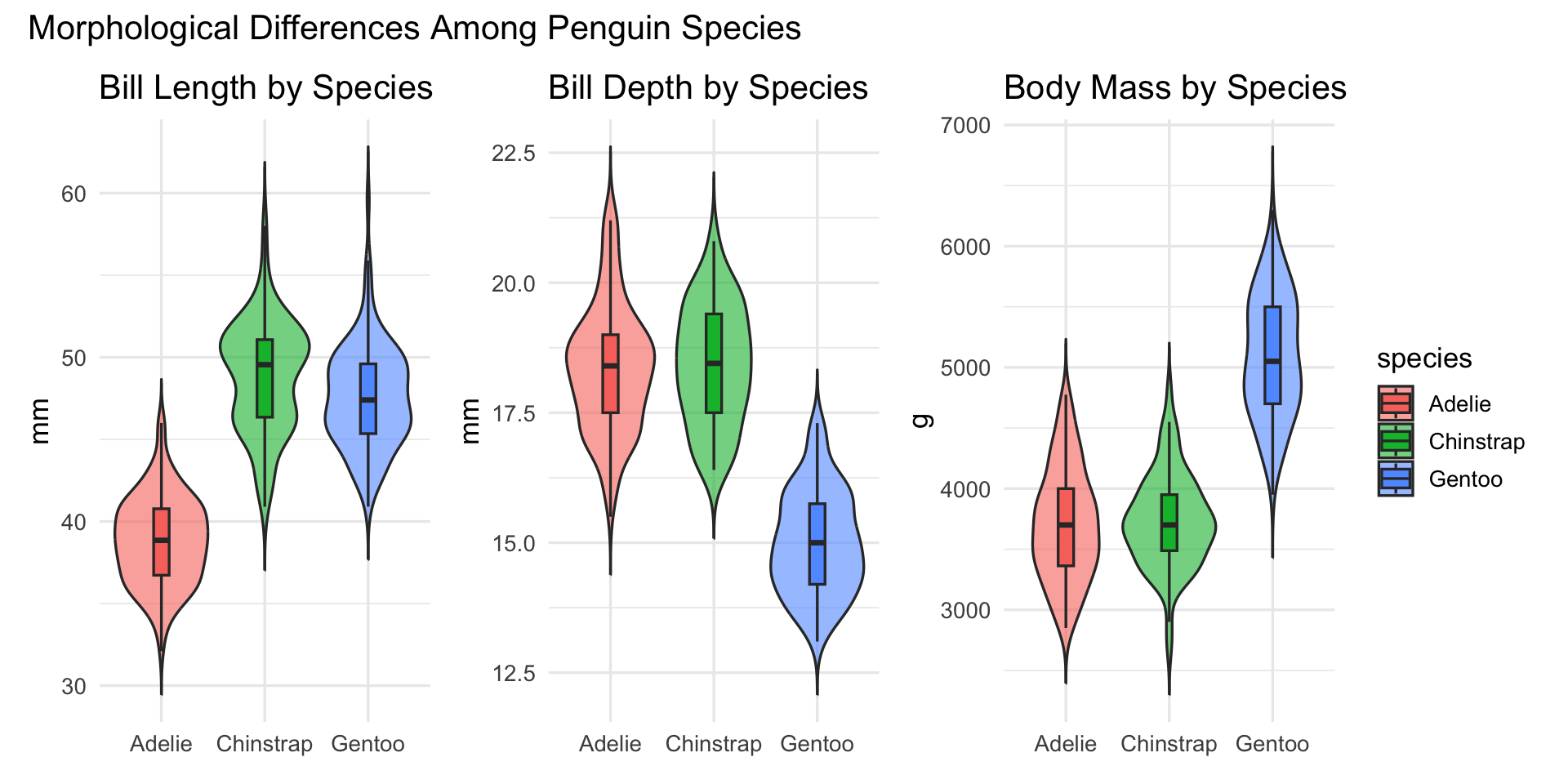

(gA | gB | gC) +
  plot_layout(guides = "collect") +
  plot_annotation(title = "Morphological Differences Among Penguin Species")

Publication-ready figure: tags & hierarchy

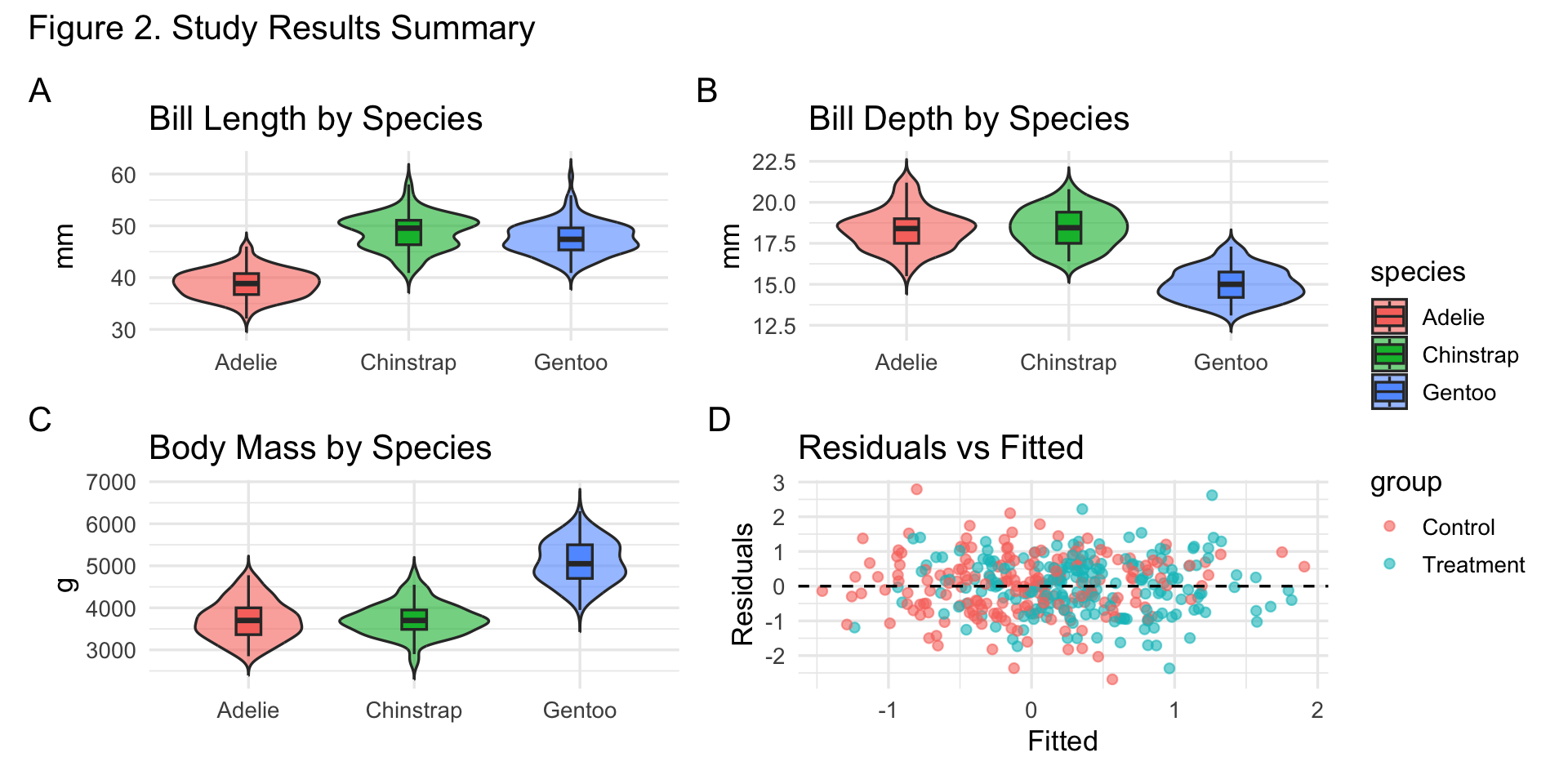

pub <- ((gA | gB) / (gC | diag1)) +
  plot_layout(guides = "collect", heights = c(1, 1.1)) +
  plot_annotation(title = "Figure 2. Study Results Summary",
                  tag_levels = "A")

pub

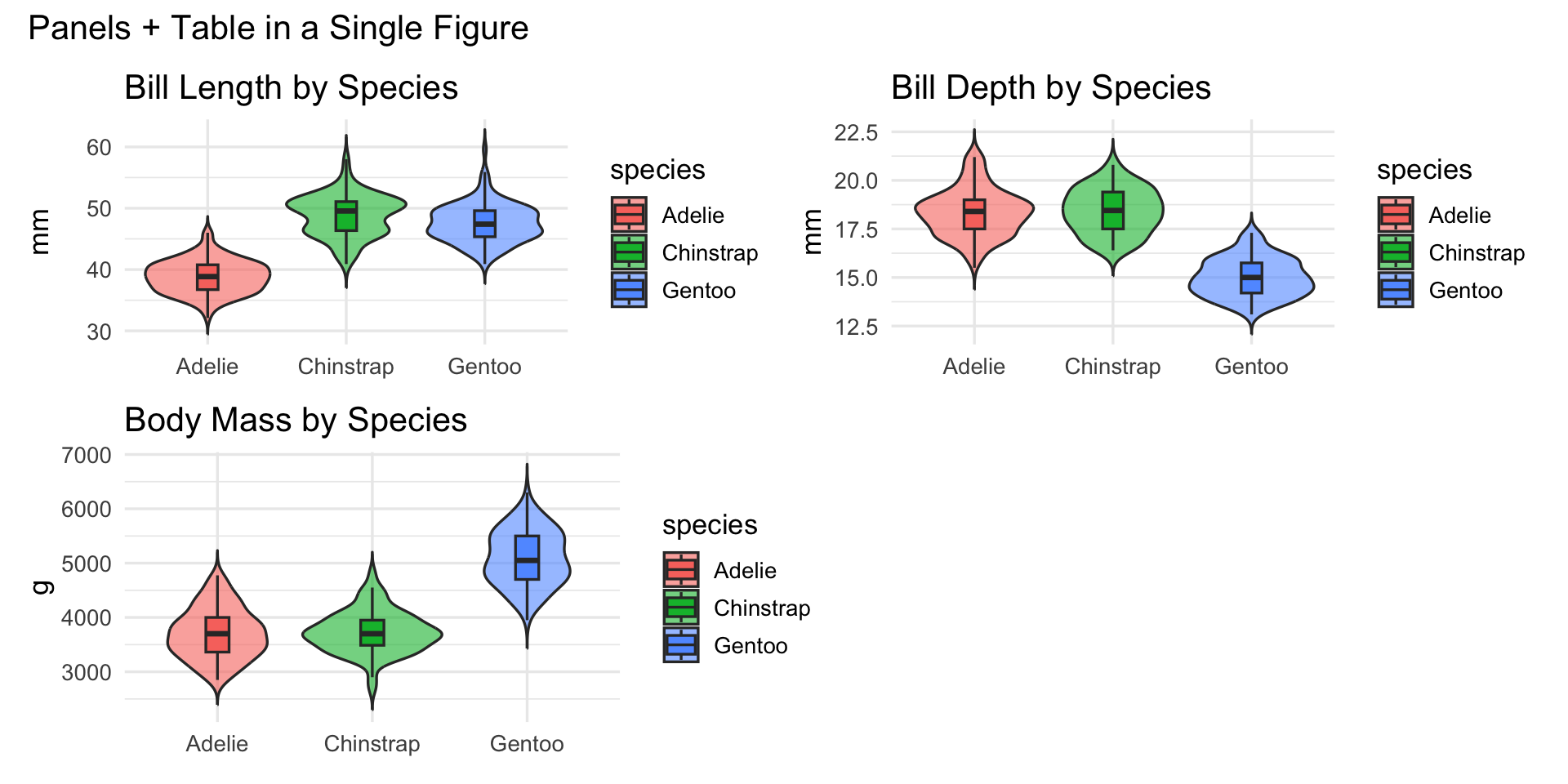

Mixing plots with a table

tbl <- peng |>
  group_by(species) |>
  summarize(n = n(),
            mean_mass = round(mean(body_mass_g), 1),
            mean_bill = round(mean(bill_length_mm), 1),
            .groups = "drop") |>
  arrange(desc(n)) |>
  gt() |>
  tab_header(title = "Sample Summary by Species")

# Render table to graphic (cowplot) for composition
tbl_grob <- cowplot::ggdraw() + cowplot::draw_grob(grid::grid.grabExpr(print(tbl)))
